EARTHLIFT
Heavy duty lifting solutions for Big Wheels and
XL Heavy Vehicles 18,500 lbs or 22,000 lbs
per column lifting capacity
[ Mobile Column Lifts ]

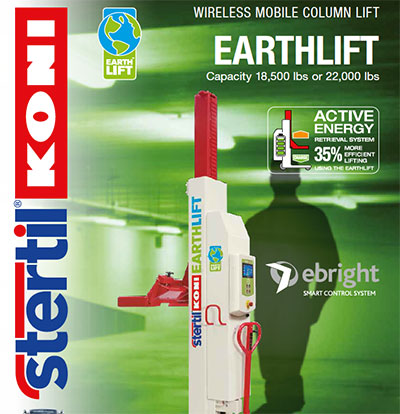

Stertil-Koni’s Earthlift
Stertil-Koni’s Earthlift uses less energy while still delivering the strength, speed and power needed for heavy duty lifting. It requires less battery charging – lowering electricity use – and regenerates about 25% of energy consumed in each operating cycle with 35% more cycles than the standard battery operated mobile lifting system. It also uses synthetic biodegradable oil (Panolin hydraulic oil) with an extremely long service life. Each column is made from components that are 98% recyclable.
Stertil-Koni EARTHLIFT column lift, uses the patented Active Energy Retrieval System. This provides you with an ecological, mobile wireless lifting solution for all of your heavy duty lifting requirements. Which other lift in the industry can achieve up to 50 lifting cycles without battery charging? You get optimum productivity in the workshop. No more expensive downtime because of battery charging!
The principle of the Active Energy Retrieval System is as brilliant as it is simple: to use the energy generated by the raised vehicle as it comes back down. In other words: regain the gravitational energy
| Overview of model | ebright wireless ST 1130 & ST 1175 |
|---|---|
| ebright Smart Control System with a control box on each individual mobile column | ✅ |
| Touch screen with important information about the system e.g. lifting height, battery status | ✅ |
| The ‘green’ standard in lifting technology | ✅ |
| Choose between a lifting capacity of 18,500 lbs or 22,000 lbs | ✅ |
| Lifetime guarantee | ✅ |
| Simple recharging with 110V | ✅ |
| Minimum repair, maximum safety | ✅ |
| Maximum flexibility for different vehicles | ✅ |
Technical specifications
| Lifting capability | 18,500 lbs or 22,000 lbs per column |
| Lift system | hydraulic lifting system with microprocessor-controlled synchronization |
| Lifting height | maximum 73”, automatic stop at the highest position |
| Lifting time | 94 seconds |
| Motor rating | 3hp per column |
| Weight | 1,350 lbs per column |
| Column lift height | 97” |
Highest safety requirements
- ANSI/ALI-ALCTV certified (USA), CSA certified (Canada),
- CE certified (Europe)
- Low voltage control panel
- Each column is equipped with an emergency stop button
- Each individual mobile lifting column is tested prior to
leaving the factory - Splash-proof electrical system (IP 65)
Accessories & options
Stertil-Koni offers an extensive package of accessories & options tailored to fit your specific needs. Optional products available include:
LED lighting set
Forklift adaptor set
Various cross beams for lifting trailers and other specialty applications
More information?
Please contact us for more details or for specific information about the Stertil-Koni EARTHLIFT or any of Stertil-Koni’s other quality products. We will be pleased to give you individual advice on a superior solution.
